Industrial Fire truck Stentor Deltaflow

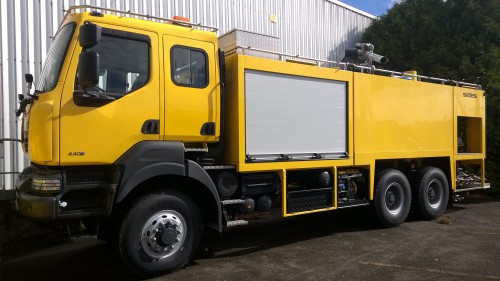

The SIDES STENTOR DELTAFLOW is a multipurpose industrial tank fire fighting vehicle.
To offer effective protection in high areas, like tank farms, refineries, oil terminals, petrochemical plants, industrial sites, ports, commercial and trading areas.
All components of this vehicle result from first class products which have been continuously developed and improved, making the vehicle completely reliable in every working conditions.
Customers Benefits
- Easy to use : All fittings and command are accessible from ground, without use of footsteps
- The body construction and mounting arrangements are designed to guarantee best and safe on- and off-road performance.
- Use of SIDES “ErgoPrime” Concept for stowage equipment : stowage capacity improvement with an easy and user friendly use
- Storage capacity optimized : Compartments are designed to place the boxes in the most compact position
- Use of SIDES high performance components: centrifugal pump, fully automatic proportioning system and special fire-fighting turret
- Hydraulic system with central proportioning allowing a simple use
Technical specification
Chassis
- RENAULT KERAX 440.35 – Euro 3– 6×6
- Max. Power : 440 hp (320KW) at 1900 rpm
- Manual gearbox – 16 speed
- 2 PTO suitable for Water /Foam Pump Drive
- Towing device
Cabin
- 4 doors – 2 seats at front – 1 bench at rear
- Air conditionning system
Water foam system
- SIDES Low Pressure Pump 21.500.12
- 400 m3/h – 15 bar on open water (1.3m Hs)
- SIDES AAP Primer for priming up to 7.5 meters
- Water Inlets : Five (5) DN100 suction lines
- Water Outlets : Four (4) DN65 – Two (2) DN100 – Two (2) DN45 discharge lines
- Foam Outlets : Four (4) DN65 – Four (4) DN100 – Two (2) DN45 discharge lines
Fire fighting Equipment
- One (1) radio controlled monitor 7500 l/min 70 m range
- One selfprotection system on cab and equipment
Water / Foam tank
- GRP Material
- Foam Capacity : 7000 liters
- Water Capacity : 2500 liters
- Mounting on chassis subframe by means of cone bearings
Foam proportioning system
- SIDES DELTAFLOW System
- Balanced Pressure Proportioning System
- Full Mechanical Control for Pressure Balancing, with return of foam compound to tank or foam suction
Superstructure bodywork
- Made of corrosion protected steel

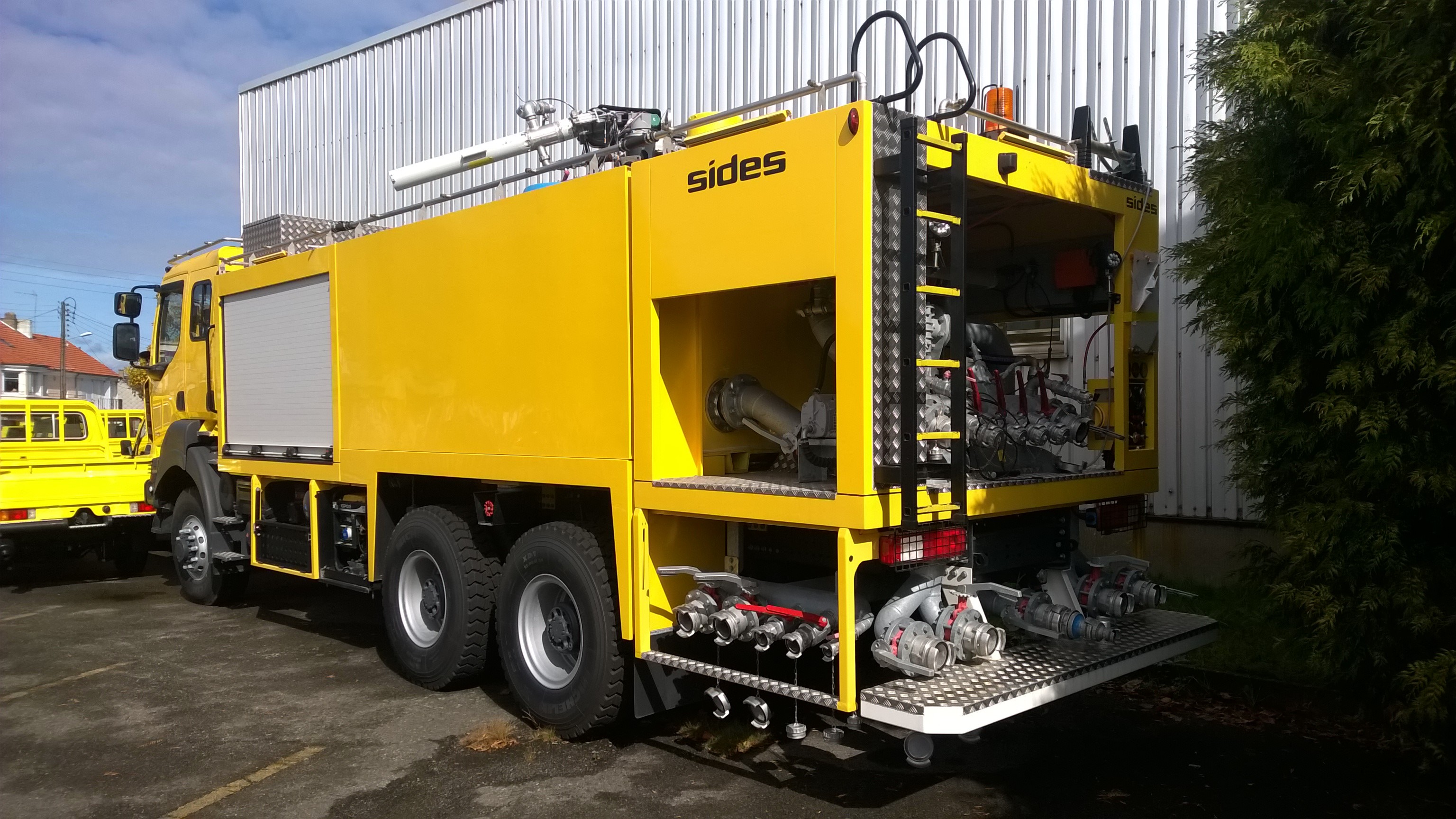

- Superstructure made with multiple storage compartments : One (1) between the tank and the cabin, the other one beneath the tank (pump compartment)
- Compartments in one (1) element (no separate construction) to guarantee the overall stiffness and longtime geometry
- The roof of the body is strengthened to hold the weight of two men at 250 kg total
- Compartments equipped with roller shutter on each side
Electric equipment
- 1 light bar on the cabin roof
- 1 Public-Address system and siren
- 5 area lightings
- 1 rear rotating lights
- 1 battery loading system
- 1 radio pre equipment
- 1 electrical generator
Accessories
- 1 set of accessories comprising suction hoses, delivery hoses, branches, and extinction accessories suitable for firefighting system use
Weights and dimensions
- L x W x H : 9.78 x 2.55 x 3.65 m
- GVW : 34.000 kg
